Error: Drilling Operation may not have been performed

This error message may show up multiple times during the calculation process and can be found in the CAM messages located in the LOGS folder.

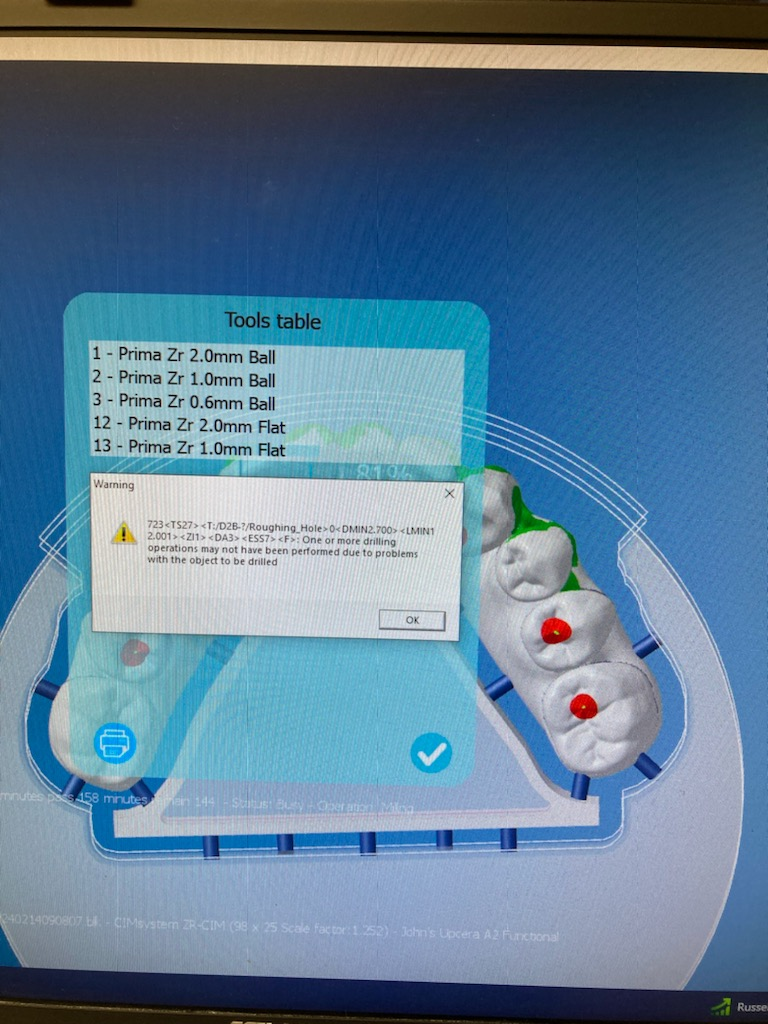

Sample Error: 723<TS27><T:/D2B-?/Roughing_Hole>0<DMIN2.700><LMIN12.001><ZI1><DA3><ESS7><F>: One or more drilling operations may not have been performed due to problems with the object to be drilled

This issue may stem from how the STL file was nested or from the incorrect positioning of the Margin Lines, Emergence Profile Curve, Drilling Axes, and Screw Channel Profile. Make the necessary adjustments if you notice any discrepancies, and then attempt to recalculate. Additionally, it may be beneficial to review the STL file using a 3D viewer.
