Dynamic Abutment Catalogue
Refer to this document for the dimensions of T-Cutter Tools being offered by Dynamic Abutments:
How to Plug In the Dynamic Abutment T-Cutter Tool into MillBox
In Millbox, utilize the designated dealer key combinations and passwords to reach the advanced configuration features of the software.

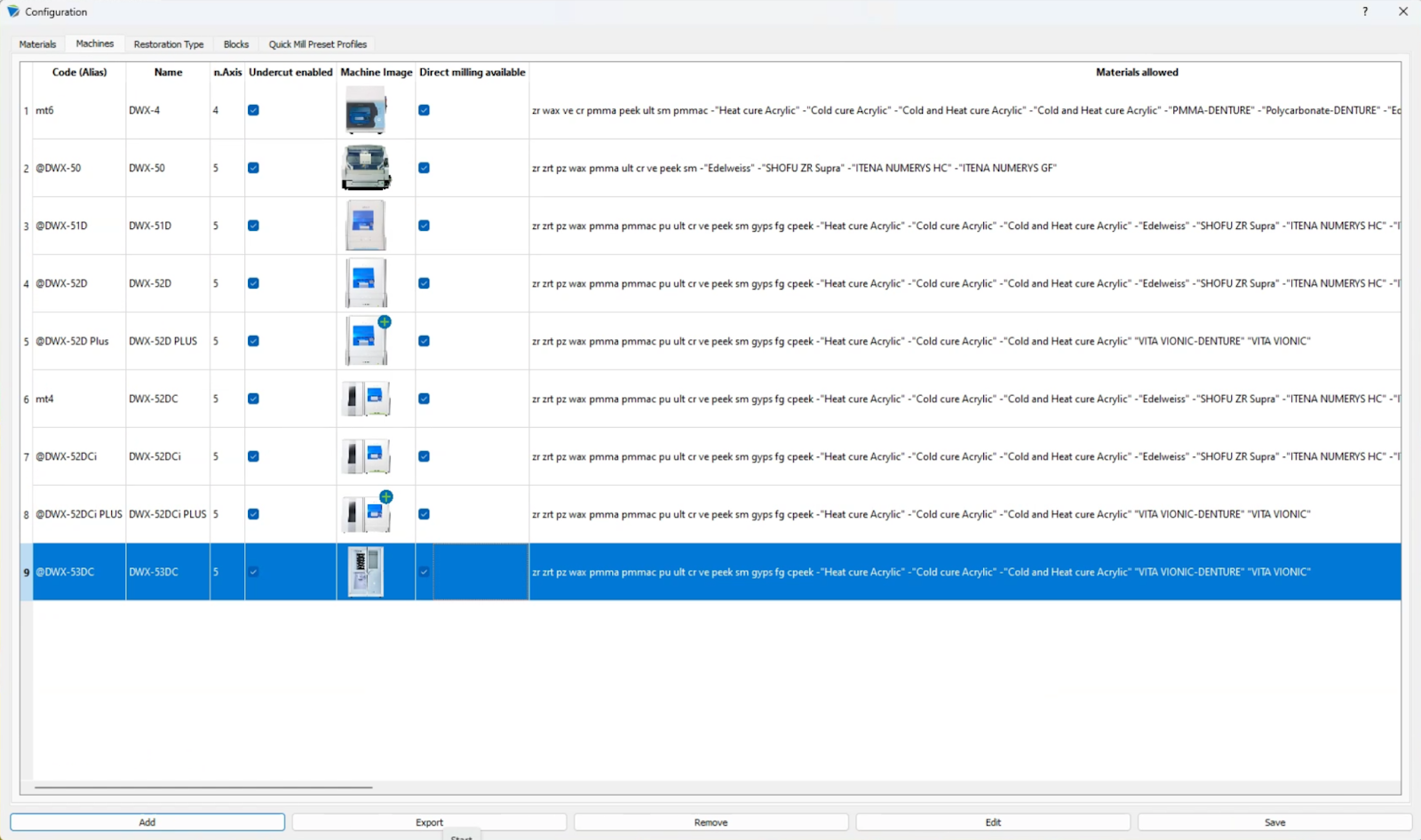

This will bring up the Configuration window – you can now choose the Machines Tab

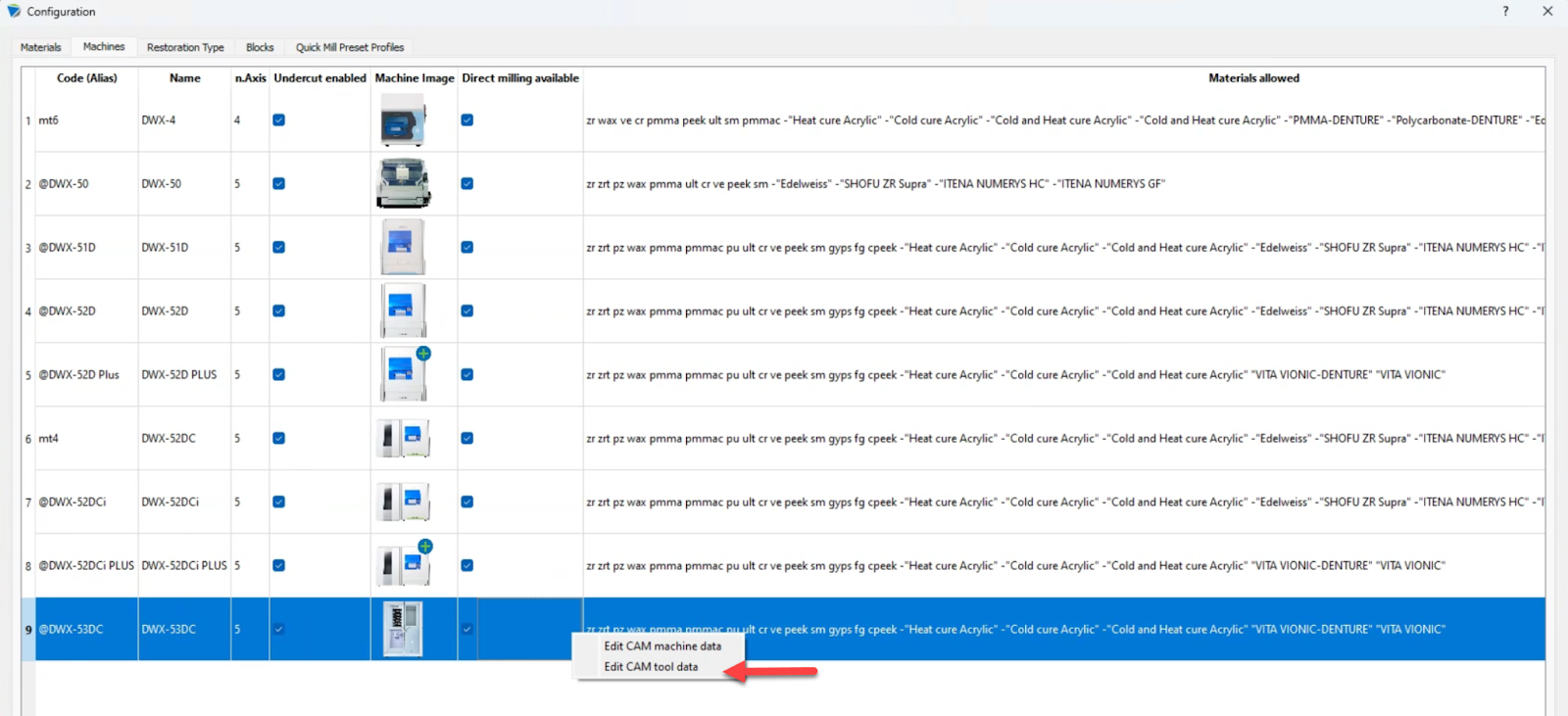

Right click the machine you’d like to add the tool set to then click Edit CAM Tool Data

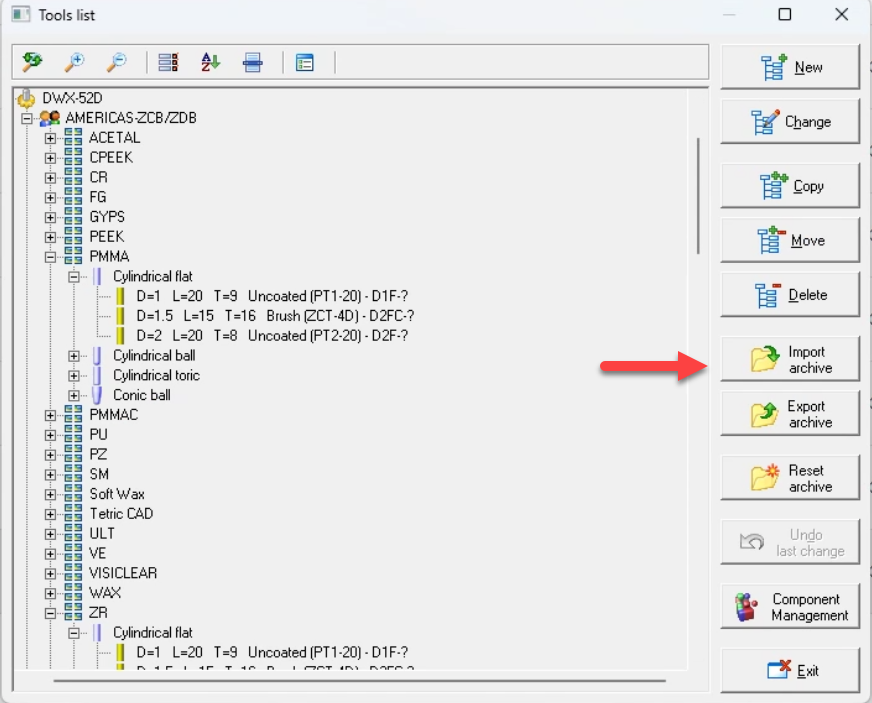

Click ‘Import Archive’

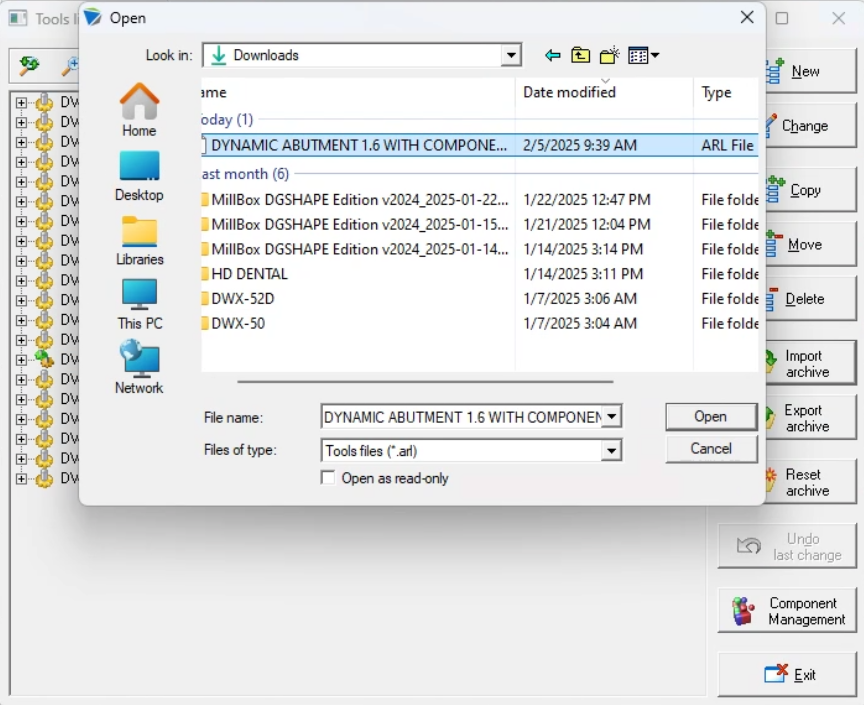

Select the Dynamic Abutment tool arl file

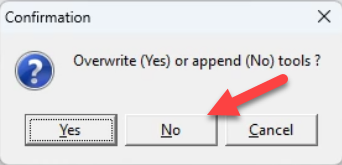

Click No on the Confirmation message

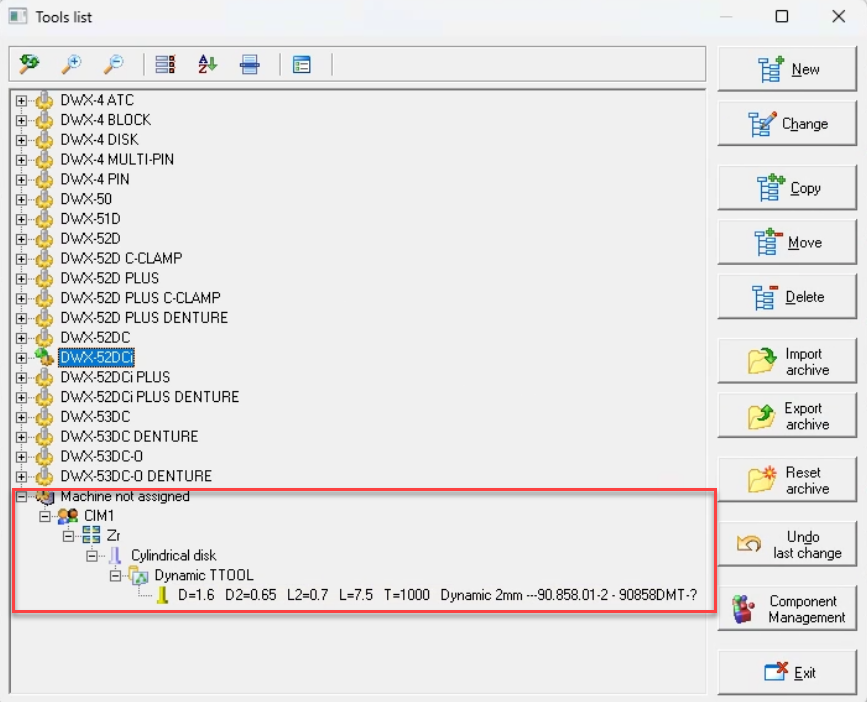

The tool should now appear under ‘Machines not assigned’ in the tool list in which you can copy or move over to the intended machine
Note: The arl files are located in this folder. If the diameter of teh tool is not 1.6mm, you can manually edit the tool dimensions and component dimensions based on the values from the Dynamic Abutment Catalogue.
